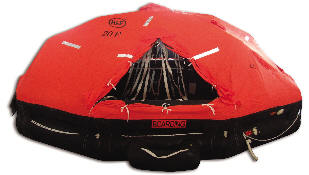

Davit-launched SOLAS Inflatable liferaft

Basic Specification of HAF-D Inflatable Liferafts
Type Rated person Physical forms length mm  Width mm  Height mm  Container Dia. mm  Container length mm   Weight kg
D15  15  Regular ten-side 3400 3400  1750 700 1420  170
D16  16  Regular ten-side 3400 3400 1750  700 1420 170
D20  20  Regular ten-side 3825 3825 3825  730  1495  185
D25  25  Regular Twelve-side 4530  3730 3730  780  1495  220




1.Radar reflector
2.Shackle
3.Position lamp
4.Retro reflector tape
5.Radar answer bag
6.Outlook window
7.Canopy
8.Boarding ramp
9.Water pocket
10.Rain catchment
11.Lifeline



12.Raft ladder
13.Lower buoyancy chamber
14.Upper buoyancy
15.Outside band
16.Inside band
17.Top up vavle
18.Overpressure valve
19.Deflate vavle for canopy tube
20.External and internal light include battery
21.Steady line
22.Rader reflector socket
23.Buoyant knife
24.Towing rope
25.Boarding flap
26.Rescue quoit socket
27.Inlet vavle
28.Cylinder
29.Accessories bag
30.Inside lifeline
31.boarding
32.Sea

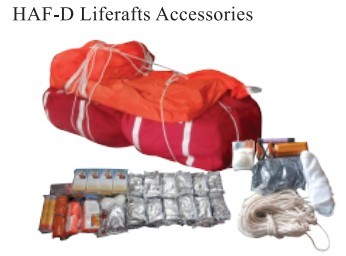

Emergency Pack Type SOLAS "A" Pack
1.First-aid kit
2.Rocket parachute signal
3.Hand flare
4.Buoy-smoke signal
*5.Ration
*6.Fresh water
7.Water proof torch
8.Floatable bailer
9.Floatable paddle
10.Sponge
11.Sea anchor
*12.Tin opener
13.Whistle
14.Rader reflector
15.Datlight signaling mirror
*16.Fishing kit
17.Thermal protective aids
*18.Stainless drinking vessel
19.Seasickness bag
20.Survivor's manual
21.Hand bellow
22.Illustration survival signal
23.Floatable knife
24.Spare rope
25.Repair kit
26.Seasick medicine
27.Log book
28.Immediate action card
29.Liferaft operation manual
SOLAS "B" Pack No include * items
Approval Standard
-1996 Amendment to the International Convention for the Safety of Life at Sea,1974
-MSC.48(66)International Life-saving Appliance Code
-MSC.218(82)Amendment to the International Life-saving Appliance Code(LSA Code)
-MSC.81(70)Revised Recommendation on Testin of Life-saving Appliances
-MSC.226(82)Amendment to the Revised Recommendation on Testin of Life-saving Appliances
-1994 and 2000 HSC Code 8
-EC directive 96/98/EC


Certificate available issued by:
-GL(Germanischer Lioyd)
-CCS(China Classification SOciety)
