Leisure Liferaft |
|
Basic Specification of HAF-Coastal
Inflatable Liferafts |
  |
|
Type/Specification |
Coastal |
|
Capacity
|
4
|
6
|
8
|
|
Length mm
|
1630
|
1920
|
2200
|
|
Width mm
|
1630
|
1920
|
2200
|
|
Height mm
|
490
|
540
|
590
|
|
Size of Valise Pack mm
|
600*370*200
|
660*400*210
|
660*420*240
|
|
Weight of Valise Pack
KG
|
24
|
29
|
34
|
|
Size of Canister Pack mm
|
730*480*250
|
730*480*250
|
730*480*300
|
|
Weight of Canister Pack KG
|
29
|
34
|
40
|
|

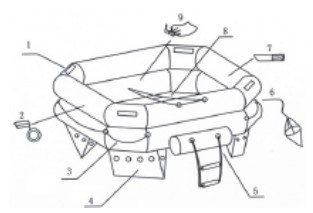

HAF-Coastal
|
1.Retro-reflector tape
2.Rescue quoit socket
3.Lifeline
4.Water pocket
5.Boarding ramp
6.Sea anchor
7.Buoyant knife
8.Boarding handle
9.Accessories bag |
|
Emergency Pack
|
1.Bailer
2.Sponge
3.Whistle
4.Bellow
5.Leak stopped plug
6.Paddle
7.Fishing gear
8.Graduated drinking cup
9.Repair kit
10.Seasicknesss pill |
|
|
Basic
Specification of HAF-ISO Inflatable Liferafts
|
|
  |
|
|
|
Type/Specification
|
ISO
|
|
Capacity
|
4
|
6
|
8
|
|
Length mm
|
1685
|
2020
|
2280
|
|
Width mm
|
1685
|
2020
|
2280
|
|
Height mm
|
1200
|
1250
|
1300
|
|
Size of Valise Pack
mm
|
660*400*230
|
670*420*250
|
680*460*260
|
|
Weight of Valise Pack
KG
|
30
|
36
|
43
|
|
Size of Canister Pack
mm
|
730*480*320
|
780*530*380
|
780*530*380
|
|
Weight of Canister Pack
KG
|
36
|
43
|
50
|
|
HAF-ISO 9650-1
1.Position lamp
2.Rain catchment
3.Outlook window
4.Retro-reflector tape
5.Lifeline
6.Water pocket
7.Buoyant knife
8.Boarding ramp
9.Rescue quoit socket
10.Sea anchor
11.Boarding handle
12.Accessories bag
13.Vent
|
Emergency Pack
1.Hand flares,red
2.Parachute rocket flare
3.Torch
4.Bailer
5.Sponge
6.Whistle
7.Bellow
8.Leak stopped plug
9.Signalling mirror
10.Paddle
11.Fishing gear
12.Graduated drinking cup
13.Repair kit
14.Lifesaving signal card
15.Seasicknesss pill
|
|
Basic Specification of HAF-ISO(SR)
Inflatable Liferafts
|

|
|
|
|
Type/Specification
|
ISO(SR)
|
|
Capacity
|
4
|
6
|
8
|
|
Length mm
|
2120
|
2540
|
2850
|
|
Width mm
|
1480
|
1740
|
1990
|
|
Height mm
|
1350
|
1550
|
1700
|
|
Size of Valise Pack
mm
|
680*440*260
|
700*470*280
|
720*500*300
|
|
Weight of Valise Pack
KG
|
36
|
44
|
50
|
|
Size of Canister Pack
mm
|
730*480*320
|
730*480*380
|
800*530*400
|
|
Weight of Canister Pack
KG
|
43
|
51
|
57
|

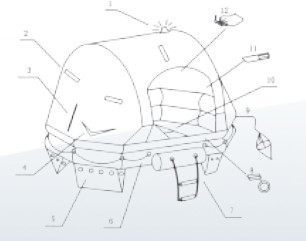

HAF-ISO 9650-1 (SR)
Self-Righten
1.Position lamp
2.Retro-reflector tape
3.Outlook window
4.Rain catchment
5.Water pocket
6.Lifeline
7.Boarding ramp
8.Rescue quoit socket
9.Sea anchor
10.Boarding handle
11.Buoyant knife
12.Accessories bag |
|
Emergency Pack
|
1.Hand flares,red
2.Parachute rocket flare
3.Torch
4.Bailer
5.Sponge
6.Whistle
7.Bellow
8.Leak stopped plug
9.Signalling mirror
10.Paddle Fishing gear
11.Graduated drinking cup
12.Repair kit
13.Lifesaving signal card
14.Seasicknesss pill |
|
|
|
|
|
|
|
Feature and Equipment
|
Buoyancy chambers(Solas
approved materials)
*Highly visible canopy
(Solas approved
materials)
*Thermal insulated
floor (Solas approved
materials)
*Rainwater collecting
system
*Outlook window
*External and interior
lighting
Retro reflective tape (Solas
approved materials)
Water stabilizing
pockets
Rescue quoit with 30 m
line
*Items
are not available on coastal liferaft |
Sea anchor
Inflatable boarding ramp
Safety knife
External and internal
life lines
Operations manual
Emergency pack (see
below)
Automatic centralizer
system (Only
configuration in
ISO(SR))
Vacuum packed
Valise or canister
|
|
|
|
 |
|
|
|
|
|
|
|
